23AWG Solid Full Copper Cat6 Cable Bulk , Network Communication Cat 6 Ethernet Cable

  • 1
  • 2

Brand Name : BLG / OEM / ODM

Model Number : CAT6 LAN Cable

Certification : CE / ROHS / ISO

Place of Origin : CHINA

MOQ : 100 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2 container /week

Delivery Time : 7~15days

Packaging Details : 1000ft per roll per easy pull box

Item : SFTP Cat6

Conductor Diameter : 23AWG

Conductor material : Pure Copper

Shielded : Al - foil + AL - mg Braid

Jacket : Colorfull PVC

Length : 1000ft

Contact Now

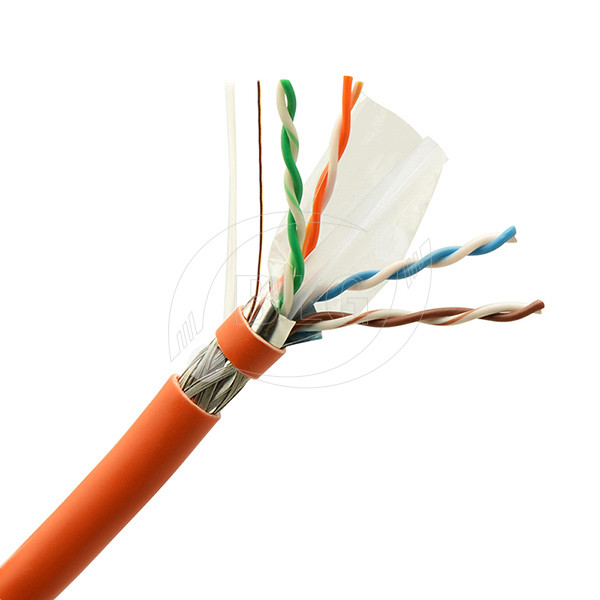

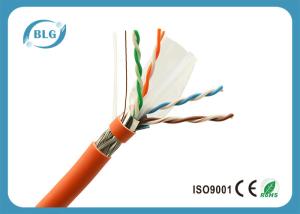

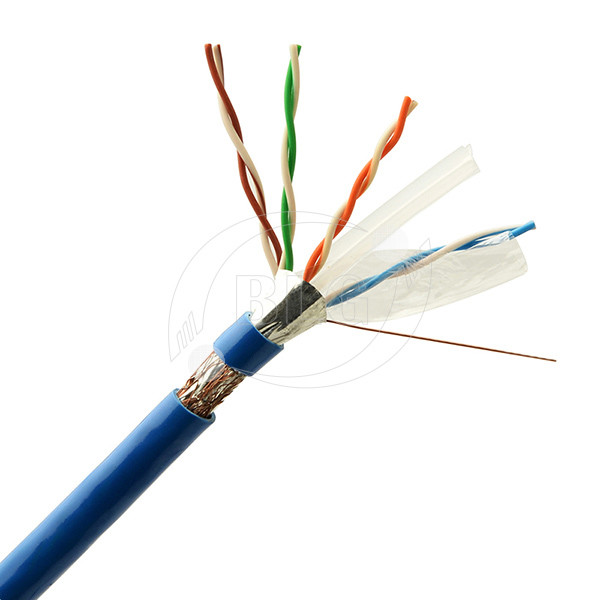

4 Pairs 23AWG Solid Full Copper SFTP Cat6 Ethernet Cable For Network Communication

Specifications for reference (we can do the cable as your reqiuments)

Cat6 LAN Cable Physical Specifications:

1) CONDUCTOR

* Raw material of the conductor: CU

* Conductor Dia.: 0.575±0.003mm (23AWG)

2) INSULATION

* Raw material of the conductor: HDPE

* Quantity:4 twisted pairs

Blue/white-blue; Green/white-green;

Orange/white-green; Brown/white-brown;

* Insulation Dia. : 1.024±0.005mm

* Average thickness: 0.02245 mm

* Minimum point thickness: 0.2220mm

3) CENTER CROSS

4) PET

5) DRAIN WIRE: O.D. 0.4mm CCA

6) OVERALL SCREEN: Aluminum foil

7) RIP CORD

8) SHEATH

* Sheath material: PVC

* Nominal Dia.: 6.80 ± 0.2mm

* Average thickness: 0.55mm

* Minimum point thickness: 0.5mm

Cat6 LAN Cable Applications :
POTS.T1 & T1 fractional, ISDN basic & primary rate;
4 / 16 Mbps token ring ( IEEE 802.5 ).10 BAST - T ( IEEE 802.5 );
100Mbps TP - PMD. 52 / 155 Mbps ATM ( ATM forum );
100BAST - T4 ( fast Ethernet );
100 VG - Any LAN ( IEEE 802.12 );
100BAST - T ( fast Ethernet );
1 Gbps Ethernet ( IEEE 802.3 ).
Cat6 LAN Cable Standard Compliances :
All proposed category 6 requirements as per ANSI / TIA / EIA, ISO / IEC, and CENELEC EN Standards;
ANSI / TIA / EIA 568 - B. 2 - 1 CAT 6;
ISO / IEC 11801 CLASS E 2nd Edition;
CENELEC EN 61156 - 6;
CENELEC EN 50173 - 1;
CENELEC EN 50288 - 5 - 1, CENELEC EN 50288 - 5 - 2;
Flame retardancy is verified according to IEC 60332 - 1 - 2.
Cat6 LAN Cable OEM Serves :
Custom for your requirement:

23AWG Solid Full Copper Cat6 Cable Bulk , Network Communication Cat 6 Ethernet Cable23AWG Solid Full Copper Cat6 Cable Bulk , Network Communication Cat 6 Ethernet Cable
